Product


Cooler

Introduce:
   The pellet is fully and evenly cooled with the counter flow cooling principle.
   Unique sliding-valve discharging unit for stable running and smooth discharging.
   Simple maintenance,convenient installation and arrangement.
   After being cooled,the pellet temperature is about 3-5 degrees higher than the room emperature
   Adjusting easily and high degree of automation.It is widely used for cooling all kinds of pellets.
   Eight angular structures,cooling evenly,no dead angle.
Technical parameters

Model Power(kw) Cooling Volume(m3) Capacity(T/H)
N1 0.75+0.55 1 1
N2 1.1+0.75 2 1-2
N3 1.5+1.1 3 2-4
N4 1.5+1.1 4 3-5
N5 2.2+1.1 5 4-6
N6 2.2+1.1 6 6-8

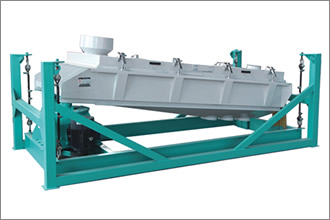

Rotary screener

Introduce:
   It is driven by one-step belt and the vibration amplitude can be adjusted.High strength screen frame is supported by the flexible bracket plate.
   Less dust ,lower noise and smaller vivibration , smooth operation.
   Convenient and flexible installation and less maintenance requirement.
   Resulting in more thorough sizing , good efficient of screening.
   The separated style cover and frame are easy for maintenance and spare parts replacement.
Technical parameters:


Model SFJH80 SFJH110 SFJH130 SFJH140 SFJH150
Length*Width(mm) 1800*800 2000*1000 2200*1100 2800*1400 3550*1530
Screen layer No. 2 2 2 2 2
Screen Inclination(°) 4-6 4-6 4-6 4-6 4-6
Power(Kw) 2.2 2.2 3.0 3.0 4.0
Capacity(t/h) 3-4 4-6 6-8 8-10 10-12

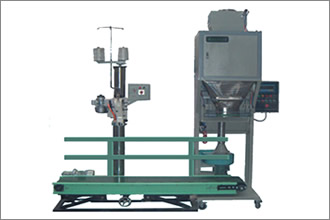

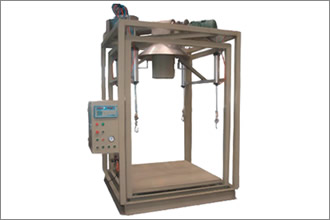

Packing machine for small bags        Packing machine for ton bags

Introduce:
  Using special intelligent instrument to control,high degree of automation,strong anti-interference ability.
  Full auto control of fast and slow intake,weighing and letting down of the bag.
  Allthe working parameters are input on the mimic panel.
  Automatic minus of the tare weight and automatic zero restting.
  The imported intellective weighing instrument can display the gross weight and net weight at the same time.
Technical parameters:


Model Range Precision Speed Power
BLD-K50 5-50kg ≤0.2% >250bag/h AC380V 50Hz
BLD-DB2 500-2500kg 0.1%-0.3% 2-3min/bag AC380V 50Hz
